THE WAREHOUSE AND GAMEBOARD

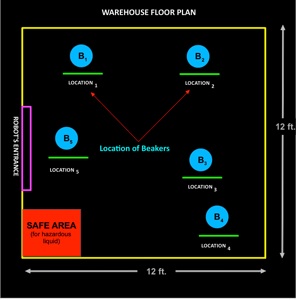

Warehouse will contain 3 to 5 containers (beakers). Each Beaker belongs in a specific location identified by either RFID or BarCode. Each Beaker will contain an unknown liquid.

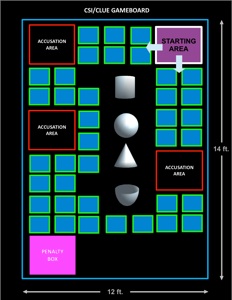

A SAMPLE GAMEBOARD


Here are the logical components of gameboard (not to scale of physical count of positions).



















Oak Hill Robotics Makerspace Video Archives

NEOACM CSI/CLUE ROBOTICS CHALLENGE

THE TEAMS OF ROBOTS:


CHEMBOT performs analysis on liquid in container once identified by Scout Bot. If liquid is hazardous it must relocate container to a safe location in the warehouse.


SCOUT BOT navigates the warehouse to investigate each known location of the container. It locates containers out of place or unknown containers and communicates the location of unknown or out of place containers to ChemBot.


GAMEBOT navigates the gameboard and examines all the suspect's label while suspect is in the "suspect area". It determines the suspect

connected to the hazardous liquid based on the clues on the labels. Gamebot makes an accusation once in an accusation area. It Communicates to ChemBot/Relocator to remove the suspect and place it in the penalty box.


RELOCATOR is used to relocate the suspect

from the "Suspect Area" to the "Penalty Box".

Interested in working with us? JOIN USmeetings.html

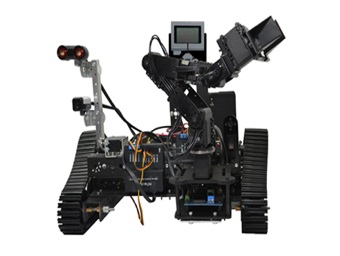

CHEMBOT
